U-shaped steel channel steel
Product Details
| Grade | Q235,Q345 | Technique | Hot Rolled |
|---|---|---|---|
| Surface Treatment | Galvanized Coated | Shape | C Channel / U Channel |
| Size | U41*21, U41*41, U52*41, U62*41, U72*41 | Thickness | 1.5-2.5mm |
Product Description

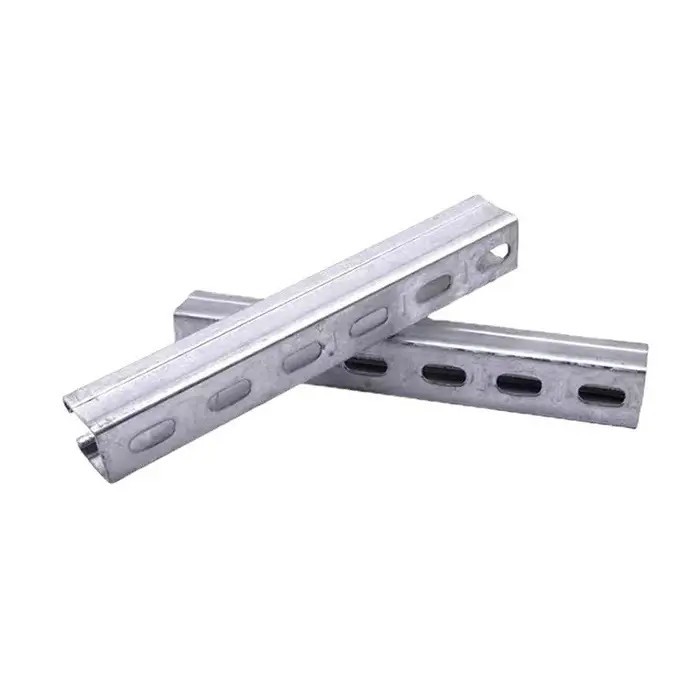

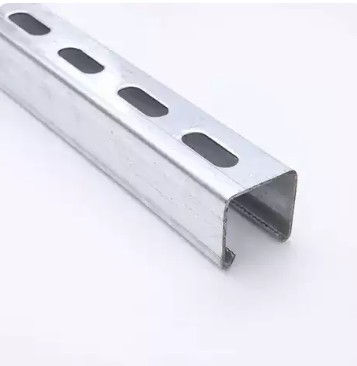

U-Shaped Steel Channel Steel
As the main structure of the PV mounting system, our galvanized steel channels are manufactured from high-quality Q235B and Q345B materials. The design provides exceptional load-bearing capacity, wind resistance, and seismic resistance, ensuring complete system safety and reliability.
C steel channels are produced from hot roll coils through advanced cold processing techniques. This manufacturing process results in thin, lightweight profiles with excellent cross-sectional performance and high strength. Compared to traditional channel designs, our U-shaped steel channels can achieve the same strength while saving up to 30% in material usage.
We employ advanced galvanizing technology that enhances product appearance while providing superior anti-corrosive and wear-resisting properties. This significantly increases product utilization rates and extends service life in demanding industrial applications.
Applications
C section structural purlins are primarily used for commercial applications but offer cost-effective solutions for smaller structures like garages and carports. They can form integral components of columns and rafters in these applications. Available in galvanized or hot-rolled black finish, our steel C section purlins come in various sizes and thicknesses to meet diverse project requirements.
Product Specifications
| Name | Size (mm) | Thickness (mm) | Material | Surface Treatment | Photo 1 | Photo 2 |
|---|---|---|---|---|---|---|
| U type steel | U41×21 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing |  |
 |
| U type steel | U41×41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing | - | |
| U type steel | U52×41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing | - | |
| U type steel | U62×41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing | - | |
| U type steel | U72×41 | 1.5-2.5 | Q235B/Q345B | Hot-Dip Galvanizing | - | |
Product Display
